Battery testing is a crucial component of modern battery technology, especially in industrial applications. Testing provides essential information about voltage, capacity, charging and discharging behavior, and the overall function of a battery system. In addition to testing, battery cells, cell connectors, welding technology, battery management, and controlled manufacturing also play a decisive role in the quality and reliability of modern battery systems.
What does modern battery technology encompass?
The term battery technology encompasses all technical areas relevant to the development, construction, manufacturing, testing, and operation of battery systems. This includes individual battery cells as well as complete modules, battery packs, and industrial energy storage systems.
A battery system typically consists of several coordinated components. Besides the cells, cell connectors, for example, handle the electrical connections, while a battery management system (BMS) monitors important operating parameters.
Key areas include:
- Selection of suitable battery cells
- electrical and mechanical cell connections
- Battery module and battery pack construction
- Welding technology and laser welding
- Battery management and battery balancing
- Battery test and quality check
- Assembly and final inspection
Especially in industrial applications, simply selecting a suitable cell chemistry is therefore not enough. The entire system must be considered as a technical unit.
Why is battery technology important for industry?
Industrial battery systems often need to operate reliably over long periods. At the same time, high currents, limited installation space, frequent charging cycles, or demanding environmental conditions can pose special requirements.
A well-designed battery system can help tailor performance, lifespan, and operational reliability to the specific application. This applies, for example, to mobile machinery, electric vehicles, autonomous systems, industrial equipment, and stationary energy storage systems.
The following questions, among others, are relevant for the technical planning:
- What voltage and capacity are required?
- What service needs to be provided at short notice?
- How many charging cycles are planned?
- What temperature conditions prevail during operation?
- How is the system monitored and protected?
- What requirements apply to production and testing?
These questions demonstrate why professional battery technology begins long before the actual battery pack assembly.
Lithium-ion battery: Structure explained in an easy-to-understand way
A lithium-ion battery consists of several basic components. The interaction of these components determines how electrical energy is stored, released, and recharged.
What components make up a lithium-ion battery?
The most important components include the anode, cathode, separator, and electrolyte. The anode and cathode are the electrochemically active electrodes. The separator separates the two electrodes and simultaneously enables ion transport.
Several cells can then be combined to form a Batt
Battery technology: testing, battery packs and industrial solutions
The quality of a battery system is not solely determined by its capacity or nominal voltage. Crucially, it depends on the interplay of cell technology, connection technology, battery management, manufacturing, and testing. This is precisely where modern battery technology becomes particularly relevant for industrial applications.
Anyone wanting to test batteries should therefore not only look at individual measurements. A meaningful battery test must be suitable for the specific application and take relevant electrical, thermal, and functional properties into account.

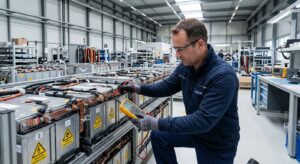

Battery testing: Which tests are useful?
Various parameters can be examined when testing batteries . These include, for example, voltage, capacity, current consumption, charging behavior, and temperature development.
The required tests depend on the design and application. A simple battery pack has different requirements than a complex industrial battery system.
Professional testing procedures can help with, among other things:
- To detect deviations between individual cells
- to check electrical properties
- To analyze charging and discharging behavior
- Detect manufacturing defects early
- to check the quality of a finished battery pack
Especially during development and production, it makes sense to schedule battery testing not as the final step. Tests can provide important insights into the system even during the development phase.
Lithium-ion battery functionality in industrial applications
The operation of a lithium-ion battery is based on the movement of lithium ions between the electrodes. During charging, lithium ions move towards the negative electrode, while during discharging the reverse process occurs.
The functionality of lithium-ion batteries is influenced by cell chemistry, construction, and operating conditions. Therefore, charging methods, temperature management, and electrical load must be tailored to the specific battery cell.
In a battery system with multiple cells, battery management (BMS) is also required. The BMS monitors important parameters and supports controlled operation of the cell assembly.
12V Lithium Battery: What is important when choosing one?
A 12V lithium battery is frequently used in applications requiring a compact and rechargeable power source. The designation 12V refers to the nominal voltage and not the battery’s full technical capacity.
Therefore, when selecting a 12V lithium battery, further properties should be considered:
- capacity
- maximum charging and discharging current
- Cell technology
- BMS
- Design
- Temperature range
- expected charging cycles
- Safety requirements
Even with a 12V lithium battery, system design is crucial. A battery with the correct voltage may be unsuitable for a particular application if, for example, current requirements, installation space, or temperature conditions are not taken into account.
Battery manufacturing and quality assurance combine
Reliable battery manufacturing requires defined processes. These include cell testing, assembly, cell connection, BMS integration, and final functional and quality checks.
Especially with customized battery systems, development and manufacturing should be closely coordinated. The requirements of the later application already influence the selection of cells and connection technology.
Battery testing should also be part of this overall concept. If tests are only considered at the end, sources of error can be more difficult to identify.
Joining technology and welding quality
Cell connectors form the electrical connections between multiple cells. A stable connection must allow a reliable current flow while simultaneously withstanding mechanical stress.
With suitable designs, laser welding can be a precise joining technique for battery manufacturing. Key factors include material, welding parameters, positioning, and process monitoring.
For companies that require reproducible manufacturing processes, a professional laser welding solution can therefore be an important part of the production strategy.

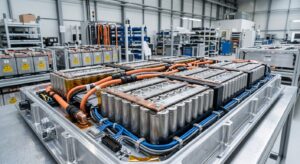

Battery pack assembly for industrial applications
During battery pack assembly , battery cells, cell connectors, protective components, BMS and other components are combined to form a functioning system.
It’s not just the electrical wiring that needs to be correct. Mechanical fixing, heat generation, cabling, and maintenance options can also play a role.
Therefore, professional battery pack assembly should already be geared towards the later application.
FAQ: Battery technology and battery tests
Why should you test batteries?
Testing batteries helps to identify electrical properties and potential deviations early on. Depending on the battery system, capacity, voltage, temperature behavior, and charging/discharging processes can be tested.
How often should batteries be tested?
This depends on the application and testing objective. Regular testing may be useful during development and battery manufacturing , while different testing intervals may be required during operation.
How does a lithium-ion battery work?
The operating principle of a lithium-ion battery is based on the controlled movement of lithium ions between two electrodes. During discharge, electrical energy is provided for the connected application.
How does a lithium-ion battery work during charging?
During charging, electrical energy is supplied, which changes the electrochemical states within the cell. The functioning of a lithium-ion battery depends on the cell chemistry, charging method, and operating conditions.
What is important in a 12V lithium battery?
When choosing a 12V lithium battery, in addition to the nominal voltage, capacity, current rating, battery management system (BMS), form factor, and temperature range should also be considered. Only the interplay of these factors determines whether the battery is suitable for a specific application.
Is a 12V lithium battery suitable for industrial applications?
A 12V lithium battery can be suitable for various industrial and mobile applications. However, the specific performance requirements and the technical design of the entire system are crucial.
What role does battery technology play in energy storage?
Battery technology significantly determines how an energy storage system is designed, monitored, and operated. Cell technology, connection technology, BMS, and testing must be tailored to the specific storage concept.
Why are cell connectors important in battery manufacturing?
Cell connectors establish the electrical connections between the battery cells. Their quality affects the current flow, mechanical stability, and reliability of the entire battery pack.
What role does welding technology play in batteries?
Welding technology is used to create reproducible electrical connections between suitable components. Depending on the design, laser welding, for example, can enable precise manufacturing.
What is tested during battery testing?
Battery testing can examine parameters such as voltage, capacity, current, temperature, and charging/discharging behavior. The specific test program depends on the cell type and application.
Why is quality assurance important in battery manufacturing?
Controlled battery manufacturing reduces the risk of variations between individual battery systems. Testing and documented processes support consistent manufacturing quality.
What is an industrial battery system?
An industrial battery system consists of several coordinated components such as cells, cell connectors, a battery management system (BMS), protective components, and a housing. The battery technology is adapted to the requirements of the specific application.
When is professional support worthwhile?
Professional support can be particularly beneficial for custom battery packs, complex battery technology , industrial welding technology, or extensive testing requirements. This allows for better coordination of technical requirements as early as the development phase.
Lithiotec as a contact partner for battery projects
In industrial battery projects, development, manufacturing, and testing must be seamlessly integrated. Lithiotec offers solutions in areas such as battery manufacturing, battery pack assembly, interconnection technology, battery testing, and industrial energy storage.
For companies, early technical coordination can be beneficial when a battery system is to be developed or optimized specifically for a particular application. From cell connection and manufacturing to battery testing, this allows for the coordination of important process steps.
Conclusion
Modern battery technology is an interplay of cells, connection technology, BMS, manufacturing, and testing. The lithium-ion battery structure alone, therefore, does not explain how reliably a complete battery system will operate later.
Anyone wanting to test batteries , develop a battery pack, or select a 12V lithium battery for a specific application should consider the technical requirements holistically. The functionality of the lithium-ion battery , manufacturing quality, and testing strategy are all interconnected.
Lithiotec offers tailored solutions for individual requirements, encompassing battery systems, battery manufacturing, welding technology, battery pack assembly, and analysis. Technical consultation can help determine the right solution for each project.
The module or battery pack must be connected. This requires reliable electrical connections that safely transfer current between the individual cells.
| component | function |
|---|---|
| anode | Electrode for the electrochemical reaction |
| cathode | Opposite electrode with active cathode material |
| separator | Electrically separates the anode and cathode |
| electrolyte | Enables ion transport |
| Cell connectors | Connects multiple cells electrically |
| BMS | Monitors and controls important operating parameters |
The specific structure can vary depending on the cell format, cell chemistry, and application.
Lithium-ion battery functionality
In a lithium-ion battery, lithium ions move between the electrodes during the charging and discharging process. Simultaneously, electrons flow through the external circuit and can provide electrical power there.
The battery management system monitors cell voltages, temperatures, and state of charge, among other things. For multi-cell battery packs, proper battery balancing is also important to ensure that the individual cells can be operated in a controlled manner.
From battery cell to industrial battery pack
The structure of a single lithium-ion battery cell is just the beginning. For industrial applications, multiple cells are connected together according to the required voltage and capacity.
This process produces battery modules or complete battery packs. The electrical connection between the cells must be mechanically stable, electrically reliable, and suitable for the intended manufacturing process.
Connection technology therefore plays a central role. Depending on the cell type and design, different methods are suitable. For demanding applications, for example, laser welding technology can be used to produce precise and reproducible cell connections.
Battery manufacturing: Precision is key
Battery manufacturing involves much more than simply assembling individual components. Every manufacturing step can influence the later function of the battery system.
Controlled assembly, defined process parameters, and reproducible electrical connections are particularly important. Errors that occur during production can later affect performance, lifespan, or safety.
Typical process steps include:
- Preparation and testing of the battery cells
- Positioning and mechanical fixation
- Production of cell connections
- Assembly of modules and housing components
- Integration of the BMS
- electrical and functional testing
- final quality control
For customer-specific battery systems, these processes must also be adapted to the design, quantity and technical requirements of the project.
Why test batteries and ensure quality?
Before use, a battery system should not only be assembled but also systematically tested. Battery testing allows for the verification of electrical properties, cell voltages, capacity, and other relevant parameters.
The test is not solely for final inspection. It can provide important insights during development and battery manufacturing, helping to identify deviations early on.
Cell connectors and welding technology in battery manufacturing
In multi-cell battery systems, individual battery cells must be reliably connected to one another. The cell connectors transmit the electrical current between the cells and must simultaneously withstand mechanical and thermal stresses.
The connection technology should therefore be considered as early as the battery system development stage. Material, geometry, contact area, and manufacturing process all influence electrical conductivity and long-term reliability.
What role does welding technology play?
Various welding processes are used in battery manufacturing. Laser welding, in particular, enables precise and controlled connections with suitable cell and connector designs.
The choice of welding process is not the only crucial factor. Welding parameters, positioning, material combination, and process monitoring must also be tailored to the specific application.
For industrial production volumes, reproducible welding technology offers advantages because consistent joint quality is an important prerequisite for stable manufacturing processes.
Battery pack assembly and battery systems
After the cells are connected, further components are integrated. Individual cells are then connected in a defined manner to create a battery system that must be mechanically, electrically, and thermally tailored to the specific application.
A professional battery pack may contain, for example, the following elements:
- Battery cells
- Cell connectors
- Safety and protection components
- Battery management system
- Temperature monitoring
- Housings and mechanical mounts
- electrical connections
Battery pack assembly should not be considered in isolation. Even minor deviations in cell positioning, connection, or wiring can affect the function of the entire system.
BMS and battery balancing
The battery management system, or BMS for short, performs important monitoring and protection tasks. For example, it can monitor cell voltages and temperatures and control operating conditions.
Battery balancing also plays an important role in multi-cell battery systems. The aim is to account for differences between the cells and thereby support controlled operation of the cell assembly.
Requirements for industrial battery systems
Industrial battery systems are often specifically designed for a particular application. A solution suitable for a small mobile device will not necessarily be suitable for a stationary energy storage system or an industrial machine.
Therefore, several factors should be considered together when interpreting the interpretation:
| factor | Importance for the battery system |
|---|---|
| Tension | Determines the electrical system level |
| capacity | Does it affect the amount of energy that can be stored? |
| Performance | Relevant for short-term power requirements |
| Design | Must fit within the available installation space |
| temperature | Affects operation and lifespan |
| Charging cycles | Relevant for the expected use |
| BMS | Supports monitoring and protection |
| Connection technology | Crucial for reliable power paths |
Even a 12V lithium battery can meet very different requirements depending on the application. Crucial factors are not only the nominal voltage, but also, for example, capacity, permissible discharge current, cell technology, BMS, and mechanical integration.
Applications of modern battery technology
Modern battery systems are used in numerous industrial sectors. These include, among others, electromobility, mobile machinery, autonomous systems, industrial equipment, and stationary energy storage.
Research and development projects also present special requirements. Flexible battery systems that can be adapted to different test setups or prototypes can be useful here.
For companies, an individual assessment is therefore often more sensible than selecting a standardized battery pack without reference to the specific application.
Why professional manufacturing and testing technology is important
The more complex a battery system becomes, the more closely development, manufacturing, and testing are intertwined. Reliable battery technology therefore requires not only suitable components but also controlled processes.
Particularly relevant are:
- reproducible cell connections
- suitable welding parameters
- controlled assembly processes
- electrical tests
- functional tests
- documented quality controls
For companies, professional support can be beneficial as early as the development phase. This allows requirements for cells, connection technology, BMS, and the manufacturing process to be aligned at an early stage.
Lithiotec as a partner for industrial battery projects
Lithiotec combines various areas of battery technology and supports companies in implementing customized battery systems. Depending on the project, this may include battery pack solutions, welding technology, battery testing, battery balancing, and industrial energy storage.
Especially in customer-specific applications, it is advisable not to consider technical requirements in isolation. Cell technology, assembly, interconnection technology, testing, and subsequent use should be planned together.
This creates a solution that not only works technically, but also meets the requirements of development, manufacturing and operation.
Conclusion: Consider battery technology as a complete system
Modern battery technology begins with the selection of suitable battery cells and extends to the testing of the finished battery system. The lithium-ion battery structure, reliable cell connectors, precise welding technology, and controlled manufacturing processes are all closely interrelated.
For industrial applications, a well-coordinated system solution is particularly important. Therefore, anyone developing or procuring battery systems should consider not only capacity and voltage, but also manufacturing quality, safety, testing procedures, and long-term operating conditions.
Lithiotec offers various technical solutions for battery manufacturing, battery pack assembly, connection technology, and battery testing. For individual requirements, early technical consultation can help develop a suitable solution for each battery project.
FAQ on battery technology
What is meant by battery technology?
Battery technology encompasses the development, manufacturing, connection, testing, and integration of battery cells into functioning battery systems. This also includes battery management systems (BMS), welding technology, battery pack assembly, and quality assurance.
What is the structure of a lithium-ion battery?
A lithium-ion battery contains, among other things, an anode, cathode, separator, and electrolyte. Multiple cells can be connected via cell connectors to form modules or battery packs.
How does a lithium-ion battery work?
During charging and discharging, lithium ions move between the electrodes. Electrons flow through the external circuit, thereby enabling the release of electrical energy.
Why is battery manufacturing so important?
Battery manufacturing influences the quality, reliability, and reproducibility of a battery system. Precise assembly, stable cell connections, and controlled testing processes are therefore crucial.
Why do batteries need to be tested?
Testing batteries helps to identify electrical properties and any deviations. Depending on the application, parameters such as voltage, capacity, temperature behavior, or other operating parameters can be checked.
What role does laser welding play in battery production?
Laser welding can be used for precise cell connections. The process is particularly suitable for manufacturing processes where controlled and reproducible connections are required.
What is important in an industrial battery system?
In addition to voltage and capacity, other relevant factors include power, form factor, temperature range, charge cycles, BMS, connection technology, and testing concept. The components must be tailored to the specific application.
